Electro Hydraulic Servo Bending Machine
Technical Parameters

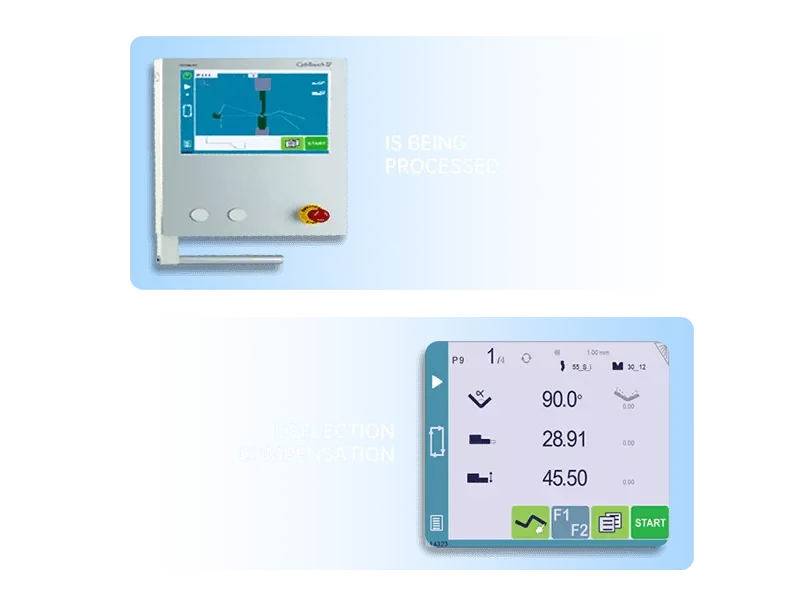

Switzerland (CYBELEC) CybTouch 12PS Control System
* Automatically calculate bending angle, main pressure and deflection compensation
* Correct the bending angle and back gauges
* Make mass bending possible with high-efficient programming
* Enable wireless interconnection via desktop or notebook computer for softwareupgrades and data backup anytime

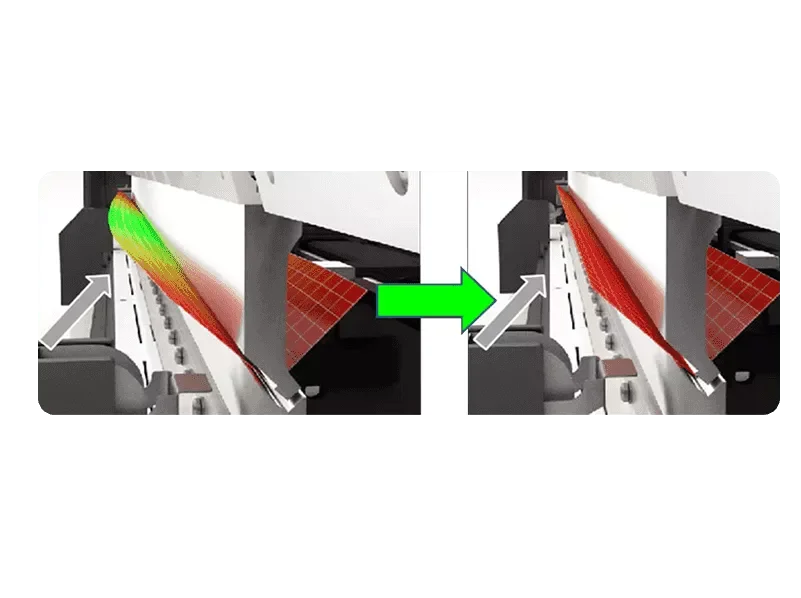

Automatic Compensation System for Mechanical Deflection
* Compensate the bending station laterally and vertically
* Calculate compensation based on length, thickness and angle of bending workpiece
* Take accurate control of compensation precision as a result of a high-precision potentiometer

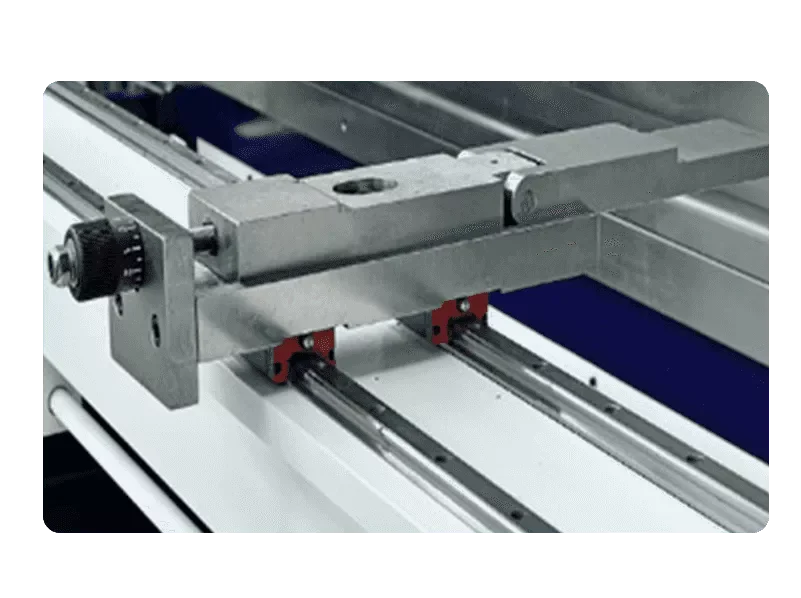

Post-positioning System
* Servo motor drives it to move backward and forward (X-axis), up and down
(Y-axis)
* Configure four positioning fingers to prevent materials from sagging and defectives caused by any error

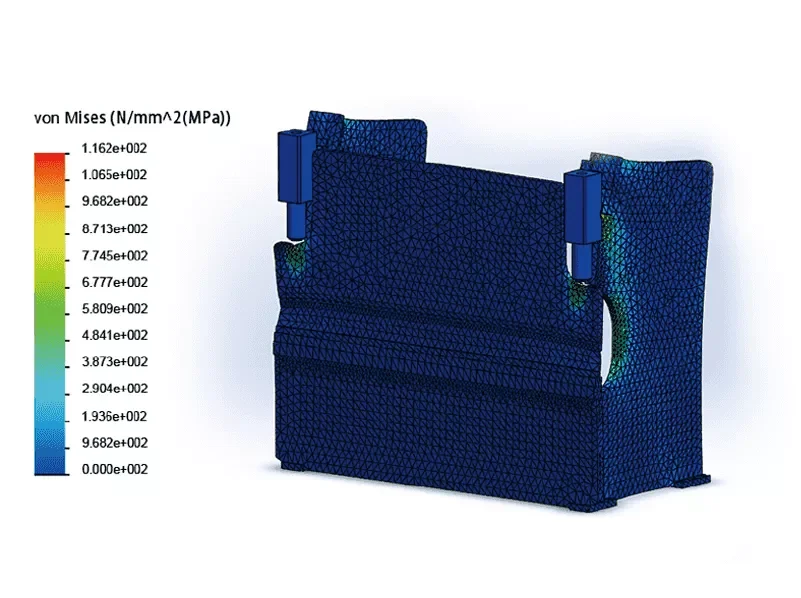

Highly-rigid Heavy Frame
* Welded by using high-quality carbon steel, creating high strength and rigidity
* Carry out finite element analysis, ensuring tiny deformation
* Once clamping and integral machining for totally guaranteed precision

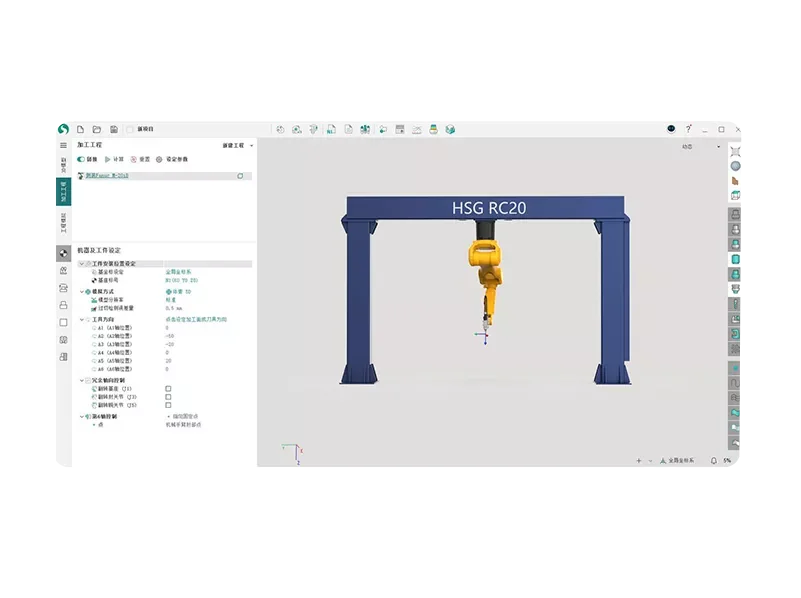

Offline Programming Software - SprutCAM X Robot
It can achieve functions such as path modification, spatial arc fitting algorithm, advanced redundant axis optimization, customized exclusive process package, etc., greatly improving processing efficiency.
